All our upholstered headboards are made with an inset back. This means that when you mount your headboard there will only ever be a small gap between the back of the headboard and the wall.

.

We offer 2 ways of fixing the our standard headboards, and our Winged Headboards are supplied with a wall retaining bracket:

1. Wooden Struts

2. Wall Mounting

3. Winged Headboard Assembly & Fixing

.

CLICK HERE FOR FITTING INSTRUCTION VIDEOS

.

1. Traditional mounting struts

.

As standard, all of our headboards come pre fitted with the strut legs (unless you order an Easy Fit Wall Mounting Pack). The struts are secured to the headboard and then slide over the mounting bolts that are already located on your bed. We make our own strong plywood struts designed specifically for our headboards.

.

Mounting Struts Fitting Instructions

When the headboard arrives with you, the struts will be folded up against the headboard and secured by the top set of bolts**.

Using the Allen Key provided, you will have to loosen the top bolts, swing the struts down into position and fit the second bolt and washer.

The height of the struts is adjustable.  You can slide the struts up and down once the bolts are in place within the moulded areas around the slots.

We recommend that you leave all bolts slightly loose to allow leeway whilst you slide the struts over the back of your divan base.

Once the headboard and struts are in place over the plastic headed mounting bolts on the back of your bed, tighten up the bolt.

Please note that the struts extend below the bottom of the headboard by 24ins (60cm). If you have an integral pillow stop fitted then the struts will protrude some 16ins (40cm). If your bed base and mattress overall height is less than 24ins (60cm), you may need to cut the struts down using a hand saw.

If you wish to mount your headboard to the wall instead, please opt for an Easy Fit Wall Mounting Pack when choosing your headboard options.

Alternatively, if you decide after receiving your headboard that you wish to fix it to the wall, we can send out the Easy Fit Wall Mounting Pack (postage £29.00). All of our headboards are pre fitted with T Nuts to accept the hexagonal bolts supplied.

**For single headboards, the struts will arrive separate to the headboard due to the size. You will need to locate the holes under the backing fabric, of which there are 4. The 2 holes at the top of the headboard are for a wall mounting pack, so you will need to attach the struts to the 2 bottom holes. If you need assistance please call us on 01291 628216 and we'll be happy to help.

--------------------

.

2. Easy Fit Wall Mounting Pack

.

We recommend Wall Mounting Packs for our taller headboards. Your headboard will arrive fitted with a split batten, and another will be supplied for you to fix on the wall. An Easy Fit Wall Mounting Pack costs an additional £29.00, if you would like to buy one, click here.

It is a simple DIY job and when complete all you do is hang the headboard on the split batten supplied.

Fitting instructions are provided with your headboard.

To download the fitting instructions, click here.

For instructions relating to earlier versions of the Wall Mounting Pack please click here.

Please note that if you choose to wall mount your headboard and you have plasterboard walls or lath and plaster walls, you must ensure that you use plugs/fixings that are appropriate for your wall. Click here to view our recommendations.

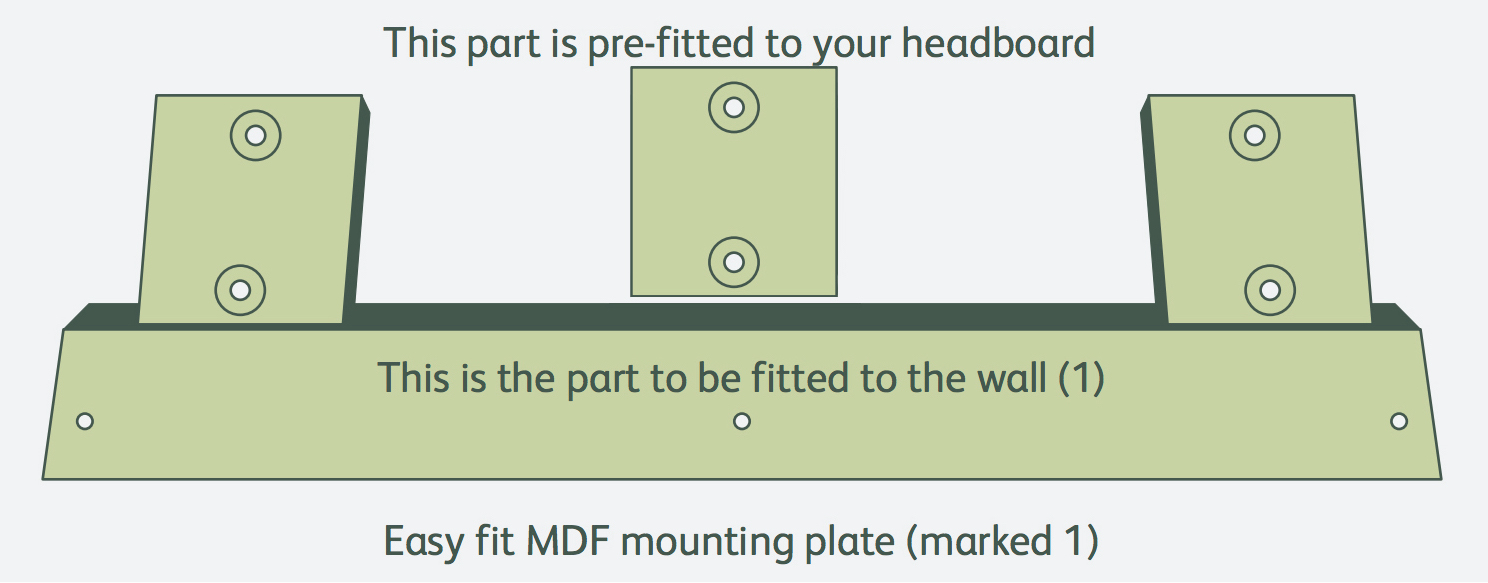

See below for a diagram of our Wall Mounting Packs:

--------------------

.

.

3. Winged Headboard Assembly & Fitting Instructions

.

If you have ordered one of our Winged Headboards, assembly may be required if you are not having delivery via our 2 man courier.

Our Winged Headboards are fitted with a Wall Mounting Pack for your headboard to be retained against the wall which is a simple DIY job.

We will also supply Plywood Moulded Struts for you to modify and fit should you not be able to secure your headboard to the wall. You will need to remove the Wall Mounting Pack fitted to the back of the headboard and install the struts. The struts should NOT be secured to the bed. The full weight of the headboard should sit on the floor on its wings. The bed should then be pushed into position against the struts, thereby holding the headboard in position. Take care when pulling the bed away from the wall to ensure that you are holding the headboard upright to avoid it toppling forward.

To view our instructions on how to assemble your wings to the headboard, and how to attach your winged headboard to the wall, please click here.

--------------------

.

Both methods are simple, fully adjustable and very strong.

.

If you have any questions just ring us on 01291 628216 and we will be happy to explain how it all works.
